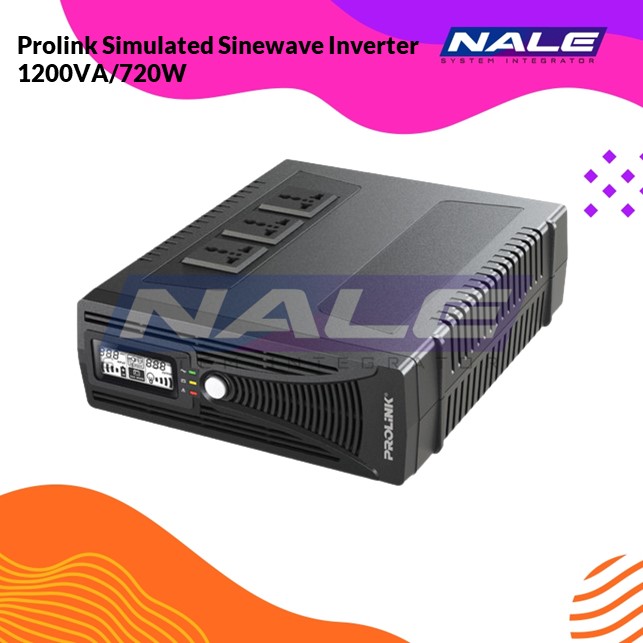

Prolink Simulated Sinewave Inverter 1200VA/720W (IPS1200)
Rp3.357.750
PROLiNK IPS Series is a compact home inverter system that delivers high efficiency conversion from DC to AC power.
GENERAL
| Capacity | 1200VA |
| Dimension (mm) | 293 x 231.5 x 82.5 (D x W x H) |
| Weight (kg) | 2.35 |
INPUT
| Nominal Voltage | 220/ 230/ 240 VAC |
| Voltage Range | 170-280 VAC (For Personal Computers)90-280 VAC (For Home Appliances) |
| Frequency Range | 50/60 Hz (Auto Sensing) |
OUTPUT
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 10% |
| Transfer Time | 10 ms (Typical) 20 ms (max) |
| Waveform (Batt. Mode) | Simulated Sinewave |
| Peak Efficiency | >95% |
BATTERY & PROTECTION
| Battery Voltage | |
| Floating Charge Voltage | 13.7 VDC ± 0.25 VDC |
| Overcharge Protection | 15 VDC |
| Maximum Charge Current | 10A or 20A (Selectable) |
| Full Protection | Overload and short circuit protection |
INDICATORS & ALARM
| LCD Display | Input Voltage, Output Voltage, Load level, Battery level and Fault alarm |
| LED Display | Fault: Red LightingBattery Mode: Yellow Flashing
Low Battery: Yellow Flashing Shutdown Mode: Yellow Flashing Charging Mode: Green Flashing Overload: Red Lighting |
| Low Battery | Sounding every 2 seconds |
| Overload | Sounding every 0.5 second |
| Fault | Continuously sounding |
| Noise Level |
< 55dB @ 1 meter |
